DEEP DRAWN BUCKETS HIGH-GRADE STEEL
COLUMBUS TYPE DEEP
1

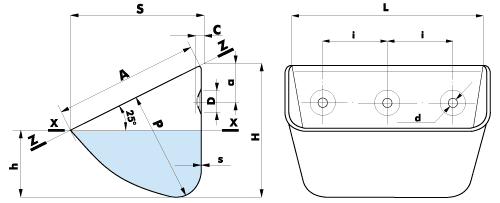

disegnog_1

Deep drawn quality steel for normal utilization or stainless AISI 304, 316 for special uses:
-Stout and solid, long lasting performance, wearproof and resistant to mechanical stress.
-Parabolic section for the best product conveyance preventing any product deposits in the elevator base with subsequent capacity decrease.
-Smooth and rounded surface for quick and complete bucket discharge and easy cleaning.
-Particularly fit for heavy duty performance, as well as heavy conveying of large granulometry products.
-Buckets are available in standard thickness plate as reported in our table and off-gauge on demand.
-Convex holes to ensure the bolt highest tightness; the bolt head is completely driven into the strip.

TECHNICAL DATA
L
80
100
120
140
160
180
200
225
250
275
300
325
350
400
S
80
90
100
112
124
130
138
144
150
155
160
172
185
200
H
80
92
105
117
128
135
145
153
160
165
170
180
190
207
h
43
49
58
63
70
75
80
86
90
93
95
98
104
114
A
86
99
110
122
136
141
152
157
164
168
175
191
204
215
P
66
76
86
97
104
112
122
125
132
136
145
152
160
173
c
3
3
4
4
4
4
5
5
6
6
6
7
7
7
a
23
25
26
30
35
35
40
45
45
45
50
55
55
70
i
40
50
70
90
100
115
130
70
77
95
105
115
90
100
d
7
8
8
8
9
9
9
9
9
11
11
11
11
11
D
22
24
25
25
28
28
34
34
34
34
38
38
38
38
Holes
2
2
2
2
2
2
2
3
3
3
3
3
4
4
capacity;
cu dm
X-X
0,14
0,26
0,45
0,60
0,75
1
1,30
1,50
1,85
2,30
2,70
3,20
3,80
5,30
Z-Z
0,25
0,41
0,63
0,96
1,20
1,55
2,15
2,50
3,10
3,70
4,50
5,50
6,50
8,70
Weight kg.
thick. mm.
1
0,14
0,16
0,23
0,30
1,5
0,55
0,65
0,80
0,92
1,05
1,20
1,34
1,55
1,77
2
2,90
Reccomended buckers/m
10
8
7
6,5
6
5,5
5
4,5
4,5
4
4
3,5
3,5
3

Drilling distance can be modified to fit all strips or chain application.
“COLUMBUS” buckets can be positioned in a row for highest conveying capacity. Dimensions and data are not binding.

psd


Dowload catalog PDF
