ELEVATOR BUCKETS
ELEVATOR BUCKETS WELDED STEEL
STEEL AND STAINLESS STEEL
1

Electro welded buckets with contour in compliance with norms DIN or made as your sample or planning

DIN 15232
saldate1
N°

 A
 B
 C
 Z1 Buckets
mm mm mm   /mtr
NJS 160-125 160 125 132 0,90 7,0
NJS 200-140 200 140 150 1,40 6,0
NJS 250-160 250 160 170 2,24 5,5
NJS 315-180 315 180 190 3,55 5,0
NJS 400-200 400 200 212 5,50 4,5
NJS 500-224 500 224 236 9,00 4,0
NJS 630-250 630 250 265 14,00 3,5
NJS 800-280 800 280 300 23,30 3,0
DIN 15233
saldate3
N°

 A
 B
 C
 Z1 Buckets
mm mm mm   /mtr
NJS 160-160 160 160 180 1,20 5,0
NJS 200-160 200 160 180 1,50 5,0
NJS 250-200 250 200 224 3,00 4,0
NJS 315-200 315 200 224 3,80 4,0
NJS 400-224 400 224 250 5,90 3,5
NJS 500-250 500 250 280 9,30 3,0
NJS 630-280 630 280 315 14,60 3,0
NJS 800-315 800 315 355 23,30 2,5
NJS 1000-355 1000 355 400 37,60 2,0
DIN 15234
saldate2
N°

 A
 B
 C
 Z1 Buckets
mm mm mm   /mtr
NJS 160-160 160 160 200 1,90 4,5
NJS 200-160 200 160 200 2,40 4,5
NJS 250-200 250 200 250 4,60 3,5
NJS 315-200 315 200 250 5,80 3,5
NJS 400-224 400 224 280 9,40 3,0
NJS 500-250 500 250 315 14,90 3,0
NJS 630-280 630 280 355 23,50 2,5
NJS 800-315 800 315 400 37,30 2,0
NJS 1000-355 1000 355 450 58,30 2,0
DIN 15235
saldate4
N°

 A
 B
 C
 Z1 Buckets
mm mm mm   /mtr
NJS 160-160 160 160 224 1,90 4,0
NJS 200-160 200 160 224 2,40 4,0
NJS 250-200 250 200 280 4,60 3,0
NJS 315-200 315 200 280 5,80 3,0
NJS 400-200 400 224 315 9,40 3,0
NJS 500-224 500 250 355 14,90 2,5
NJS 630-250 630 280 400 23,50 2,0
NJS 800-280 800 315 450 37,30 2,0
NJS 800-280 1000 355 500 58,30 1,5

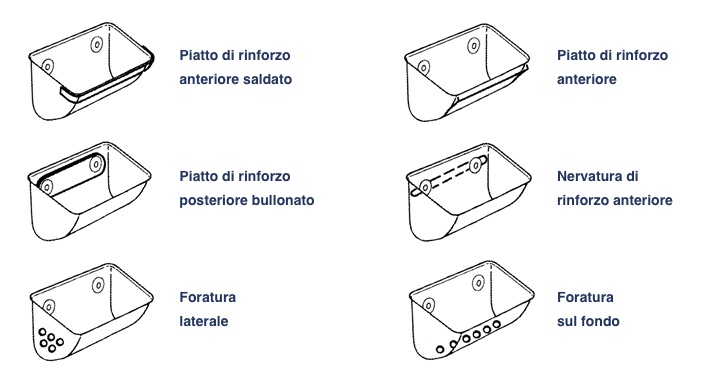

Possible options for pressed or welded buckets

saldate_variante1

Welded front
reinforcement

Bolted rear
reinforcement

Lateral
borings

saldate_variante2

Front reinforcement
moulding

Rear reinforcement
moulding

Bottom
borings

Possible options for pressed or welded buckets
