SLIDEVALVES DUSTPROOF
RACK MANUAL CONTROL

SLIDEVALVE ONLY
• Frame and slidevalve with great thickness
• Materials employed: Stainless steel Aisi 304-316 on request

SCREW MANUAL CONTROL
• M3 Rack outside of the dust flow
• 18 teeth sprocket
• Handle drive

END OF STROKE INDUCTIVE
• Set screw on slidevalve frame ø 18 T 10/36 V DC

valvola_foto2_interno

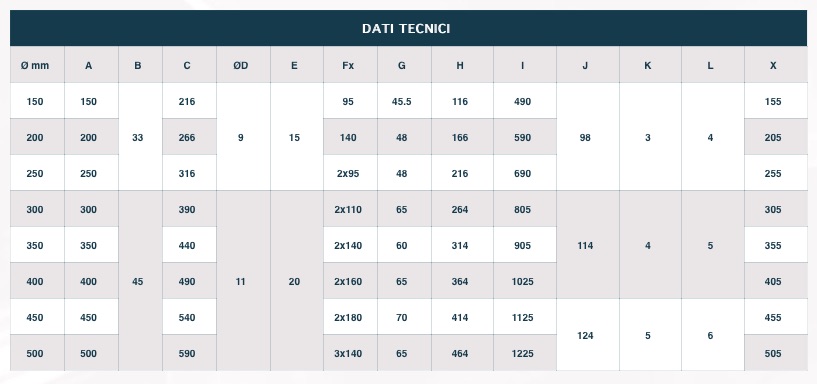

TECHNICAL DATA
Ø mm A B C ØD E Fx G H I J K L X
150 150 33 216 9 15 95 45.5 116 490 98 3 4 155
200 200 266 140 48 166 590 205
250 250 316 2x95 48 216 690 255
300 300 45 390 11 20 2x110 65 264 805 114 4 5 305
350 350 440 2x140 60 314 905 355
400 400 490 2x160 65 364 1025 405
450 450 540 2x180 70 414 1125 124 5 6 455
500 500 590 3x140 65 464 1225 505

Stainless steel production on request
